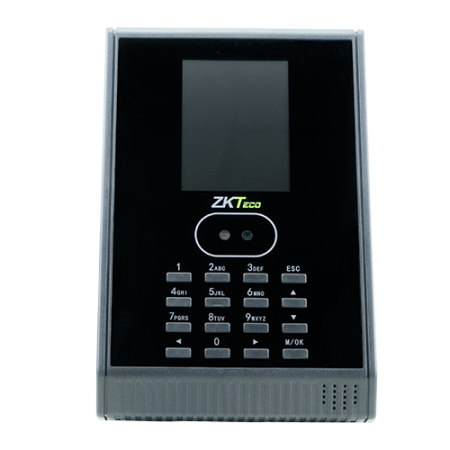

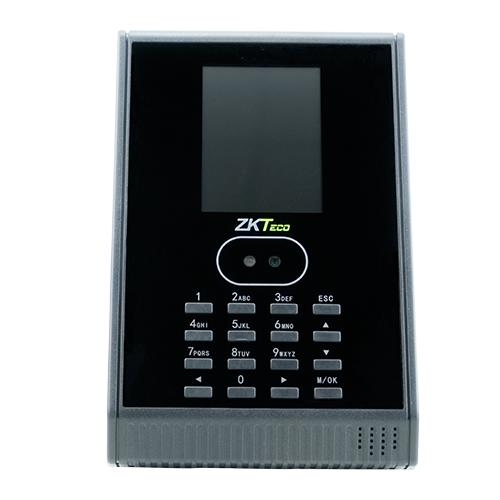

ZKTeco Time Attendance KF160
KF160 is an innovative terminal for management employee attendance and basic access control functions. User verification is performed using face recognition (standard) or ID cards (optional). The verification process takes less than 1 second. The user-friendly UI provides customers with a quick and easy experience. Data transfer can be done through your TCP / IP or USB to transfer data manually interface.
Features
Simple UI
Perfect Reports
TCP/IP, USB-Host
FingerPrint Sensor
Easy Installation
Parameters
Face Capacity | 1,500 |
ID Card Capacity | 2,000 |
Record Capacity | 100,000 |
Display | 2.8-inch TFT Screen |
Communication | TCP/IP, USB-Host, Wi-Fi (Optional) |
Standard Functions | SMS, DST, Schedule-bell, Self-Service Query, Automatic Status Switch, T9 Input, Photo ID, Camera, Multi-verification, RS232 Printer (Optional Cable) |
Interface fot Access Control | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
Optional Functions | ID / MF Card, Work Code, ADMS |
Power Supply | DC 12V 1.5A |
Verification Speed | Less Than 1 Sec |
Operating Temp. | 0°c – 45°c |
Operating Humidity | 20% – 80% |
Dimension | 109×165.5×33.2 mm (Length*Width*Thickness) |
Net Weight | 264g |
Packaging
ِDownloads
UA300
۰٫۶۲ MB
۲۰۱۵-۰۴-۲۷
Download
