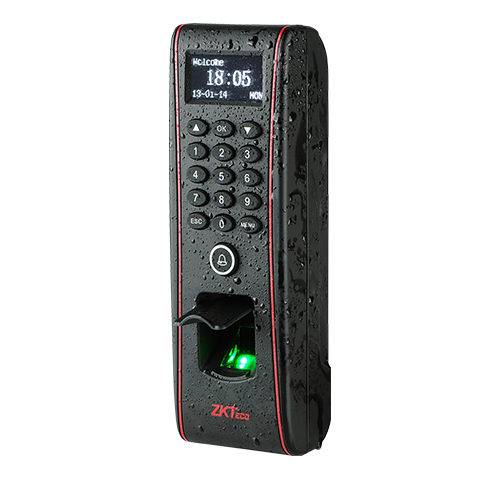

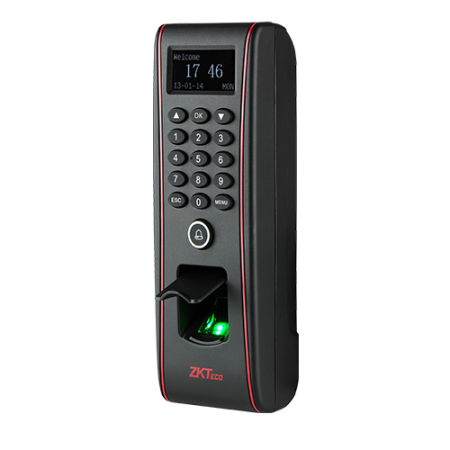

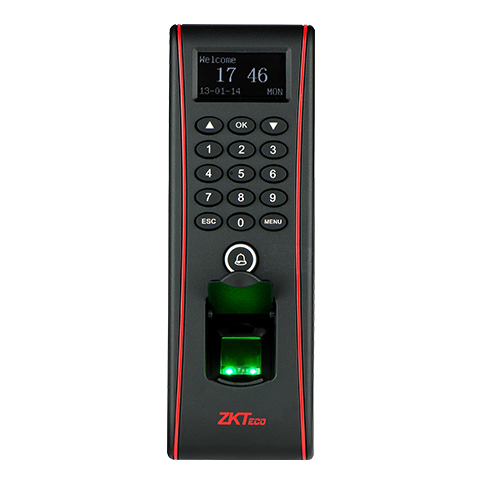

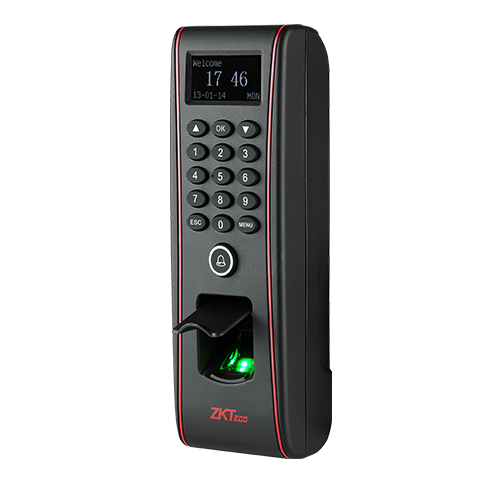

ZKTeco Access Control TF1700

TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing. With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others. The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKBioAccess management software which has versatile features and powerful functions.

Features

Simple UI

Perfect Reports

TCP/IP, USB-Host

FingerPrint Sensor

Access Control

Parameters

  • Fingerprint Sensor Type
  • Algorithm Version
  • Communication
  • Fingerprint Capacity
  • Card Capacity
  • Logs Capacity
  • Wiegand Signal
  • Ingress Protection Rating
  • Display
  • Keypad
  • Power Supply
  • Operating Temperature
  • Dimension
  • Infrared detection fingerprint sensor
  • ZK Finger V10.0
  • TCP/IP, RS485, USB Host
  • 3,000 Fingerprints (8,000 Optional)
  • 10,000 Cards
  • 50,000 Transactions
  • Wiegand input & output
  • IP65
  • 128 x 64 OLED
  • 3 x 5 keypads & doorbell
  • 12V DC 3A
  • -10 °C – 50 °C (14°F -122°F)
  • 62.5mm × 185mm × 41.5mm (W×H×D)

Packaging

ZKTecoIran
ZKTecoIran
ZKTecoIran
ZKTecoIran

Downloads

TF1700

2.29 MB
2015-08-26

Download

Download
