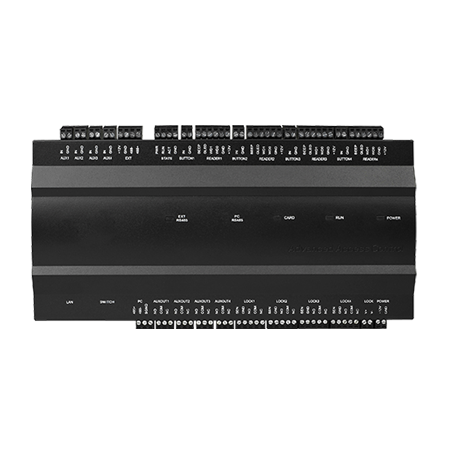

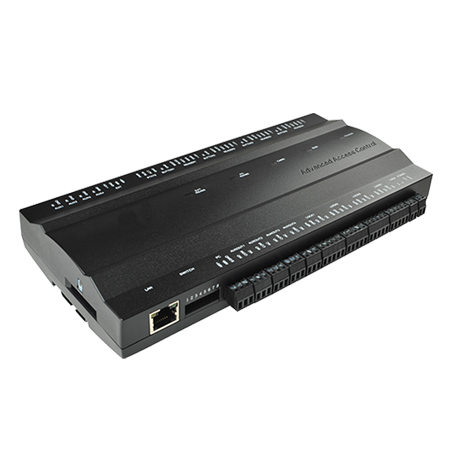

ZKTeco inBio 460
IP-based Biometric Door Access Control Panel
Features
Simple UI
Perfect Reports
TCP/IP
Access Schedule Management
4-Door Control
Parameters
- Number of Doors Controlled
- Number of Readers Supported
- Types of Readers Supported
- Number of Inputs
- Number of Outputs
- Card Holders Capacity
- Fingerprint Capacity
- Log Events Capacity
- Communication
- Dimension(L*W*H)
- Net Weight
- Power
- Operating Temperature
- Operating Humidity
- Installation Method
- 4 Doors
- 12 (8*RS-485 Readers, 4*26/34-bit Wiegand Readers)
- 26 / 34-bit Wiegand and RS485 FR Series Reader
- 12 (4 Exit Device, 4 Door Status, 4 AUX)
- 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
- 30,000
- 3,000
- 100,000
- TCP / IP
- 226x106x36 mm
- 1.11 Kg
- 9.6V-14.4V DC
- 0 – 45 °C
- 20% to 80% RH
- Wall mount (metal enclosure box)
Packaging
Downloads
InBio460
0.88 MB
2017-07-04
Download
